Patch Panel Cable Management

In the organized cabling framework, a total availability includes link, fix board, divider outlet and fix rope supporting all LAN applications. Quantities of links come into or go out, in this circumstance where effectively motivations link spaghetti. A fix board not just plays out the capacity of going about as the connectors, yet in addition orchestrates the links in sorted out requests. Thus, the efficient fix board link administration gives a dependable cabling framework to the greater part of the present system applications and future-sealing systems.

Why Need Patch Panel Cable Management?

The most part is that a fix board gives a brought together area to oversee arrange associations. With regards to making a move, include, or change (MAC), the fix board link administration would adequately diminish the time and cost to perform physical changes at a fix board in a wiring storage room. But that, it gives physical security to delicate system associations, (for example, fiber interfaces), and limits organize downtime by permitting simple access amid routine upkeep. As a last point, it gives the versatility to expand thickness when you have to interface countless.



High-Density Cable Management Solutions Based on Patch Panel

Fix board link administration is associated with numerous segments: fiber optic fenced in areas (divider mount or rack mount walled in area), fiber optic fix board (LC, SC, ST, MTP, MPO), fiber optic tape, level or vertical link administration board or link administrator. Various types of mixes take care of the demand to adequately oversee high-thickness organized cabling in various applications.

(1) Rack Mount Enclosure + Fiber Patch Panel

The rack mount walled in area is constantly stacked with LC, SC, ST, MTP/MPO fiber connector board to give a pathway to associate spine to-spine or spine to-level fiber cabling. As indicated by the application requests, distinctive units of fiber walled in area can be chosen. For the most part, 1U rack fenced in area can consider 4 FAPs up to 96 filaments, 2U up to 192 strands, and 4U up to 288 strands. For higher cabling thickness, the mix of fiber walled in area and fiber fix board gives a productive, adaptable and simple route for fiber link administration in the server farm.

(2) Rack Mount Enclosure + Fiber Optic Cassette

Notwithstanding mounting with fiber optic fix board, rack mount nook can likewise hold MTP-8, MTP-12, or MTP-24 fiber tape to give the interface between the MTP connector on the storage compartment and the LC duplex jumpers for brisk association of remote or server farm applications. This mounting choice is appropriate for 10G to 40G or 25G to 100G application.

(3) Blank Rack Mount Modular Panel + Fiber Optic Cassette

The clear particular board has various capacities to give an entire answer for steering system cabling and securing patch strings. At the point when 1U rack mount measured fiber fenced in area board is mounted with 4 MTP/MPO tape, it can house the aggregate fiber limit up to 96 strands. It is interestingly intended for both front and back mounting abilities with simple access link administration.

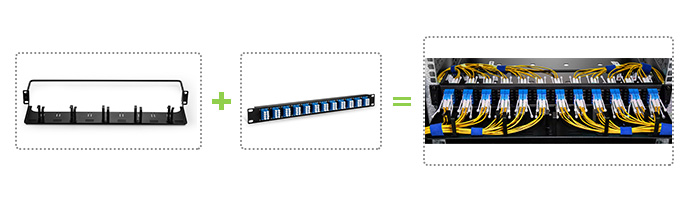

(4) Blank Rack Mount Modular Panel + Fiber Patch Panel

Aside from fiber tape, the clear rack mount secluded board with binding bar can likewise hold 1U fiber fix board to productively oversee high-thickness organized cabling in server farms.

(5) MTP/MPO-LC Enclosure + Cable Management Panel

The MTP/MPO-LC walled in area is intended to associate 40/100G hardware with the current 10G gear in a financially savvy way. The breakout board incorporates the advantages of MPO pre-ended breakout cabling and conservative fix boards, and a few gatherings joins are dispatched in the dispersion box that guarantees an elite and solid straight association from 10 G Be to 40/100 G Be. The link administration board with D-rings is utilized for even link administration in the front of 40/100G breakout board. This arrangement is ideal for 40/100G movements in a high-thickness server farm.

(6) Blank Multimedia Adapter Patch Panel + Cable Management Panel

Clear sight and sound connector fix board permits customization of establishment for mixed media applications requiring incorporation of fiber fix links and copper links. The embedded cornerstone jacks or couplers can be Cat6a, Cat6, Cat5e or Cat5. What's more, the fiber optic connectors can be standard LC duplex, SC simplex, and MTP/MPO. So it can total up to six unique kinds of ports on request at one time. The link administration board with D-rings is a sort of link coordinator to keep the links in an adequate condition and fulfill the useful prerequisites of high-thickness organize cabling.

(7) Ethernet Patch Panel + Horizontal Cable Manager with D-rings

Ethernet fix board incorporates Cat5e, Cat6, or Cat7 fix board. They are a perfect technique to make an adaptable, solid and clean cabling framework for Ethernet Cables. The even link supervisor is frequently used to mastermind little packages of fix links from organize switches and fix boards. It gives a prudent and unrivaled link administration answer for sorting out fix strings and keeping up required curve span.

Conclusion

The present server farms require a solid, adaptable, and sensible cabling framework, and after that the fix board link administration arrangements address these patterns and encourage the effectiveness of high-thickness server farm cabling. Incidentally, when acquiring the cabling framework, there is no single arrangement that will meet the greater part of the link administration needs. Expectation this article gives you the complete fix board link administration methods for the effective cabling arrangement in your server farm.
